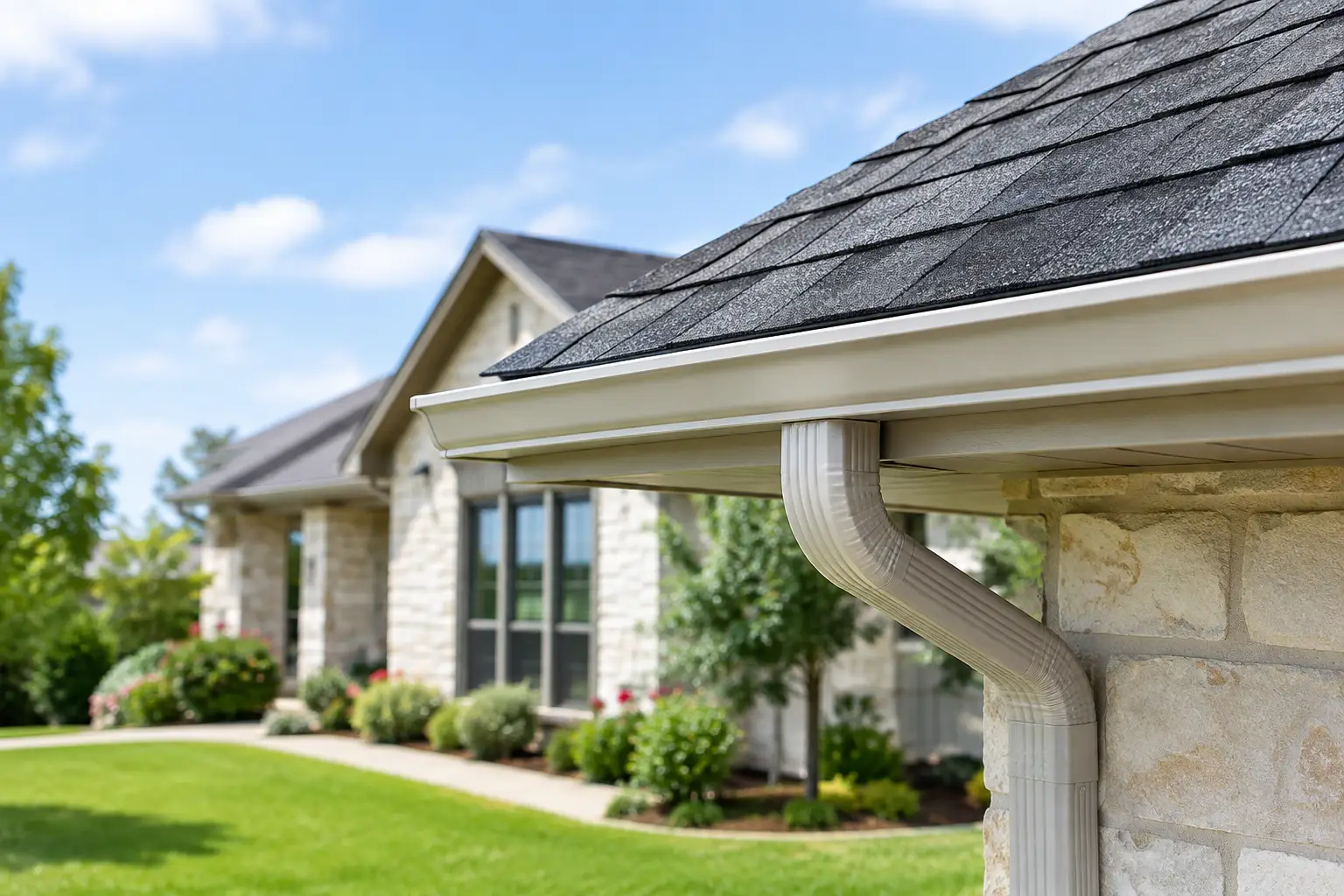

A roof can have years of useful shingle life remaining and still create a serious property problem if it sends water to the wrong place. This guide to roof drainage design explains how roof runoff should move from the roof edge to a safe discharge area – and why that path matters so much for homes and commercial buildings in Southeast Texas.
Heavy rain is not unusual in this region. When gutters overflow, downspouts stop at the foundation, or grading directs water back toward the structure, the result may be moisture intrusion, eroded soil, wood decay, standing water, or movement in expansive soils. These concerns are often connected. A drainage defect at the roofline can become a foundation, siding, crawlspace, or pest issue over time.
Start With the Full Water Path
Roof drainage should be evaluated as one continuous system, not as separate parts. Rain falls on the roof covering, enters gutters or roof drains where installed, moves through downspouts or leaders, and discharges away from the building. The final grade must then carry the water farther away without allowing it to return toward the foundation.
A defect anywhere in that path can overwhelm the rest of the system. For example, a properly sized gutter does little good if a downspout terminates beside a slab edge. Likewise, a long downspout extension will not solve the problem if the yard slopes back toward the home.
During an inspection, visible clues often help identify drainage concerns even when it is not raining. Look for soil washout below roof edges, mulch displaced from planting beds, splash marks on siding, algae growth, settled areas near the foundation, and staining at gutter joints. These conditions do not always prove active water intrusion, but they warrant closer evaluation.
Guide to Roof Drainage Design: Roof Shape and Runoff Volume
The roof’s shape, pitch, and total drainage area determine how much water arrives at each edge. A large roof plane can deliver a surprising volume of water during a fast-moving Gulf Coast storm. Water from a steep roof also reaches the gutter with more force than water from a shallow slope.
Complex rooflines deserve particular attention. Valleys collect runoff from multiple roof planes and concentrate it in one location. If a valley discharges into a short gutter run, a small undersized gutter, or an area without a downspout nearby, water may overshoot the gutter or spill over its outer edge. Repeated overflow can damage fascia boards, saturate wall cladding, and erode the soil below.
Low-slope roofs use a different approach. Rather than relying on perimeter gutters, many low-slope commercial and residential roofs direct water to scuppers, internal drains, or edge drains. These components must remain open and properly flashed. Ponding water, debris accumulation, and blocked scuppers can shorten roof-covering life and increase the chance of leakage at penetrations and seams.
The right design depends on roof area, roof geometry, local rainfall intensity, gutter capacity, and discharge conditions. There is no single downspout spacing or extension length that works for every property.
Gutters Must Catch and Carry the Water
Gutters should be securely attached, continuously sloped toward their downspouts, and free of major obstructions. A gutter that appears level may still be intentionally pitched slightly to drain, but standing water after a rain can indicate improper slope, sagging hangers, or a clogged outlet.
Common inspection findings include loose gutter sections, separated seams, missing end caps, rusted metal, leaking corners, and gutters installed too low beneath the drip edge. When the roof edge does not direct water into the gutter, runoff may travel behind it. This can wet the fascia, soffit, and wall assembly instead of reaching the downspout.
Gutter guards can reduce leaf buildup, but they are not maintenance-free. Pine needles, roof grit, seed pods, and fine organic debris can collect on top of guards or clog the gutter outlet. Homeowners should not assume that a guard eliminates the need for periodic cleaning and observation during rainfall.
A gutter system should also have enough capacity for the roof area it serves. Overflow at one location may be caused by debris, but persistent overflow from a clean gutter can point to inadequate sizing, poor placement, or too few downspouts.
Downspouts Need a Safe Discharge Point
Downspouts are where a roof drainage design either protects the building or creates trouble at the ground level. They should be connected, intact, and directed away from the foundation. Water released directly beside exterior walls can saturate soils along the slab or pier-and-beam perimeter.
In Southeast Texas, consistent moisture changes around a foundation can be especially significant. Some soils expand when wet and shrink during dry conditions. While drainage is only one factor in foundation performance, concentrated roof runoff can contribute to uneven moisture conditions that deserve correction.
Extensions may be above ground, buried, or connected to a properly designed drainage system. Above-ground extensions are easy to inspect and maintain, but they can be damaged by lawn equipment or create a trip concern if poorly located. Buried piping looks cleaner and can carry water farther away, but it must slope correctly, remain clear, and discharge where it will not affect neighboring property or return to the structure.
Do not route roof water toward a septic drain field, a water well area, or a low spot that stays wet. Rural properties require careful planning because drainage paths can interact with wells, septic components, driveways, and natural swales.
Grade Is the Final Part of the System
Good roof drainage ends with positive grading. The soil immediately around the building should generally direct surface water away from the foundation. Depressions at the perimeter, landscape borders that trap water against siding, and hardscape that slopes toward the structure can defeat even well-functioning gutters.
Be cautious about simply adding more soil against the house. Exterior grade should not cover siding, brick weep holes, foundation vents, or other features intended to manage moisture. Raising grade too high can create concealed wood-destroying insect access points and increase the chance of moisture damage at wall materials.
A proper correction may involve regrading, adding a swale, extending downspouts, installing a catch basin, or adjusting hardscape drainage. The appropriate solution depends on the lot, soil, roof runoff volume, and available discharge area. A quick patch can shift the water problem from one side of the property to another.
Pay Attention to Hidden Moisture Evidence
Roof drainage defects often leave evidence beyond the gutters. Exterior wood rot at fascia or trim, staining on ceilings near exterior walls, deteriorated paint, elevated moisture readings, and microbial-like growth can all justify further investigation. In crawlspaces, wet soil, standing water, decayed framing, and damaged insulation may indicate that surface drainage has been inadequate for some time.
Moisture also attracts pests. Termites and other wood-destroying insects are more likely to thrive where damp conditions and vulnerable wood materials are present. Drainage correction does not replace a wood-destroying insect inspection, but it can remove conditions that increase risk.
For commercial properties, evaluate whether roof runoff affects entrances, sidewalks, parking areas, loading zones, and exterior equipment. Water that discharges across a walking surface can create a slip hazard. Water that ponds near mechanical equipment can contribute to corrosion and premature component deterioration.
Practical Maintenance That Prevents Bigger Repairs
Property owners should observe the drainage system during or immediately after a substantial rain. This is often the fastest way to find overflow, leaking seams, blocked downspouts, and discharge points that are too close to the building. From the ground, look for water spilling behind gutters, pouring over their front edge, or collecting at the foundation.
Clean gutters and roof drains as needed, especially after leaf drop and severe weather. Keep downspout outlets open, repair loose sections before they separate completely, and monitor areas where soil repeatedly washes away. If a drainage problem has already caused interior staining, exterior decay, foundation concerns, or recurring moisture, obtain a qualified evaluation rather than relying on a cosmetic repair.
Texas Country Inspection routinely sees how small drainage oversights can become expensive conditions when they are left uncorrected. Water should leave the roof, move away from the structure, and stay away. When that simple path is working, it protects far more than the gutter system.
